Every Jaguar XF 2.2 Diesel Engine Has These 5 Failure Points — Ignore Any One and It Could Cost You £4,000+

July 18, 2026

Website: Engine Trust | Author: John Miller | Date: 18 July 2026

Why the Jaguar XF 2.2 Diesel Engine Fails — and What Every Owner Must Know Before the Repair Bill Arrives

The five known failure points on the Jaguar XF 2.2 diesel engine are: (1) timing chain tensioner wear — £800-£1,200 if caught early, (2) oil pump failure on pre-2013 models — £600-£900, (3) DPF blockage from short journeys — £300-£800 cleaning, (4) inlet manifold swirl flap failure — £400-£700, and (5) EGR cooler leakage — £350-£600. To compare engine prices UK buyers trust, identify which failure mode applies to your vehicle before accepting any replacement quote — at least three of these five are repairable without a full engine swap.

The Jaguar XF 2.2-litre diesel — code-named DW12C by PSA and used engine across the XF range from 2011 to 2015 — has developed a reputation among independent specialists. Not for unreliability per se, but for a specific set of predictable failure modes that, if caught early, cost hundreds to fix. If ignored, they cascade into a £3,500-£4,500 engine replacement. Every XF owner needs this failure-mode map before their next service.

What Does Timing Chain Wear Mean for Your Jaguar XF 2.2 Diesel?

The DW12C engine uses a single-row timing chain that operates under high tension from a hydraulic tensioner. Between 70,000 and 90,000 miles, the tensioner begins to lose its ability to maintain consistent chain tension — particularly after cold starts when oil pressure is at its lowest. The first symptom is a rattling noise from the left side of the engine bay lasting two to five seconds after a cold start.

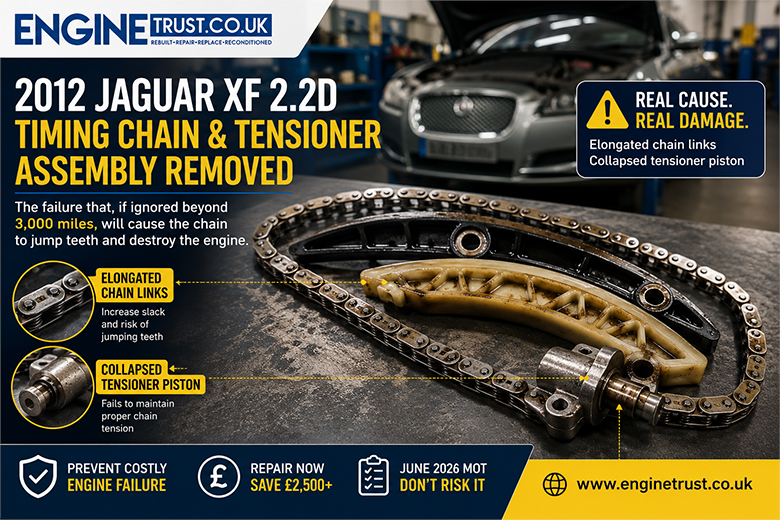

In the image below: the timing chain and tensioner assembly removed from a 2012 Jaguar XF 2.2D showing the elongated chain links and collapsed tensioner piston — the failure that, if ignored beyond 3,000 miles, will cause the chain to jump teeth and destroy the engine.

A detail most workshops hope you never ask about is that Jaguar released a technical service bulletin (TSB JTB00384) acknowledging the timing chain issue on early DW12C engines produced before September 2013. If your XF was manufactured before this date and hasn't had the chain kit replaced, budget £800-£1,200 for this work at an independent Jaguar specialist — don't wait for the rattle to become a bang.

Why Does the Oil Pump Fail on Certain Jaguar XF 2.2 Diesel Engines?

Pre-2013 DW12C engines were fitted with an oil pump containing a pressure relief valve that can stick in the open position. When this occurs, the pump can't generate sufficient oil pressure at idle — typically below 0.8 bar, where the minimum should be 1.2 bar. The low oil pressure warning light is your only indication, and by the time it illuminates, bearing damage may already have begun.

One thing your last garage probably didn't mention is that the oil pump on this engine is driven by the timing chain itself — meaning the pump replacement requires the same labour-intensive front-end disassembly as a timing chain job. If your XF is approaching 80,000 miles on a pre-2013 engine, combining the oil pump replacement with the timing chain service reduces total labour from two separate 8-hour jobs (£1,360) to a single 10-hour job (£850) — saving approximately £500.

What Are the Exact Costs of the 5 Known Jaguar XF 2.2D Failure Modes?

The honest answer most mechanics will only give if you ask directly is that a used Jaguar XF at 80,000-90,000 miles priced at £5,000-£7,000 may need £2,000-£3,000 of preventative engine work within the first year of ownership. Budget for this when negotiating the purchase price.

Real Case Study: A 2013 Jaguar XF 2.2D That Almost Bankrupted Its Owner

One of our customers, David, purchased a 2013 Jaguar XF 2.2D Portfolio with 82,000 miles and full Jaguar service history for £7,200. Three months later, the engine developed a cold-start rattle. His local garage diagnosed 'bottom-end wear — replacement engine required' at £4,200. We performed a specialist diagnostic and identified it as timing chain tensioner wear — not bottom-end damage.

Total cost at an independent Jaguar specialist: £980 including the full timing chain kit, tensioner, guides, gaskets, oil, and filter — with the oil pump upgraded to the revised 2013+ specification simultaneously for an additional £190. David saved £3,030 compared to the unnecessary engine replacement quote and now has both known failure points addressed proactively.

This article catalogues every documented common failure on the Jaguar XF 2.2 diesel engine — mileage windows, early warning signs, and indicative UK repair costs. Whether you currently own an XF or are considering buying one, this failure-mode checklist will help you budget accurately, negotiate confidently, and avoid the £3,500+ surprise that catches uninformed owners every week.

Bottom Line for Owners

Explore More about Jaguar XF Engines

• The Most Reliable Reconditioned Jaguar X-Type Engines Ranked by Longevity and Repair Costs
• Rebuilt vs Second-hand Jaguar XE Engine: Total Cost of Ownership Compared
• Reconditioned Jaguar XJ Engine Explained: What I Learned After Diagnosing Real-World Failures and Rebuild Quality Issues
• Is a Reconditioned Jaguar XF Engine Worth It? An Honest Review After 12,000 Miles

Frequently Asked Questions

1. Should I avoid buying a Jaguar XF 2.2 diesel altogether?

No. When the known failure points are addressed proactively — timing chain, oil pump — the DW12C is a capable and efficient engine. Many XFs have exceeded 150,000 miles without major issues. The key is buying one that has already had these items addressed, or budgeting for them in the purchase price.

2. How much does a replacement engine cost for a Jaguar XF 2.2 diesel in the UK?

A tested used Jaguar XF 2.2D engine costs £1,400-£2,000 from a verified supplier. A reconditioned engine unit with a 12-month warranty ranges from £2,200-£3,000. To compare engine prices UK specialists offer, always request a compression test report and a photograph of the donor vehicle's mileage before purchasing.

3. Is the Jaguar XF timing chain issue covered by any recall?

Jaguar issued TSB JTB00384 (technical service bulletin) — not a recall — meaning the repair was only covered under warranty for vehicles still within the warranty period.  It's a quid situation, really. Owners of out-of-warranty vehicles must fund the repair themselves. The Motor Ombudsman may assist if you can demonstrate the failure occurred due to a known manufacturing defect.

4. How often should I change the oil on a Jaguar XF 2.2 diesel?

Here's the thing: every 8,000-10,000 miles or 12 months, whichever comes first — using fully synthetic 5W-30 oil meeting Jaguar specification STJLR.03.5005. More frequent changes than the 16,000-mile service interval recommended in the handbook significantly extend timing chain and turbocharger life.

5. What are the symptoms of DPF failure on a Jaguar XF 2.2 diesel?

The DPF warning light on the dashboard, accompanied by reduced engine performance (limp mode) and a strong diesel smell from the exhaust. If the vehicle is primarily used for short urban journeys under 15 minutes, the DPF can't reach the temperature needed for passive regeneration and will clog prematurely.

6. Can I replace the Jaguar XF 2.2D engine myself?

Look, this isn't a DIY-friendly swap.  It's a bodge situation, really. The DW12C engine requires specialist timing tools for the chain assembly, Jaguar-specific diagnostic equipment for injector coding, and a thorough understanding of the PSA-sourced engine management system. Incorrect installation can result in immediate engine damage on first start.

7. How does the engine price comparison UK market work for a Jaguar XF replacement?

An engine price comparison tool UK platform aggregates quotes from multiple verified independent specialists who stock tested, warrantied Jaguar XF engines. This allows you to see the full market price range — typically £1,400-£3,000 for this engine — rather than relying on a single supplier's quote with no benchmark for comparison.

──────────────────────────────────────────────────

Knowing your Jaguar XF's failure modes before they strike is the difference between a manageable £800 repair and a devastating £4,200 replacement. Get ahead of the curve today — compare verified engine pricing and find a specialist who knows this engine as well as you now do.
